Discontinued

The functionality of YC Active has been integrated into and !

Grab a short VGA cable (with pin 9 connected for 5V power)

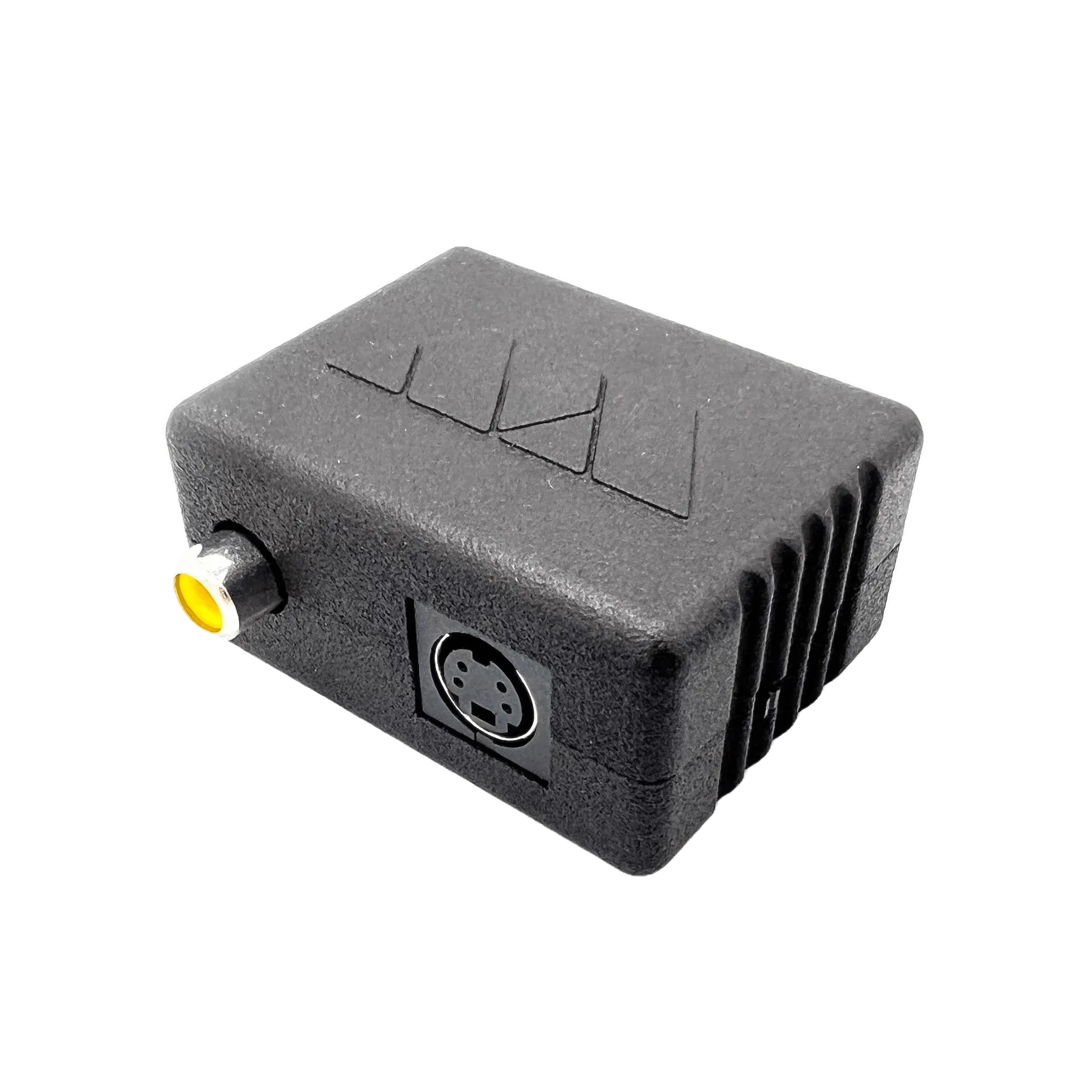

• Outputs S-video (Y/C) and composite video simultaneously
• Active Luma trap for cleanest composite video possible on MiSTer
• Tuned for NTSC but works with PAL
• Switch to toggle between direct video, and IO board input (position closest to VGA input = Direct Video input)
• VGA connector is HD-15 female (VGA cable needed to connect to the IO board or direct video adapter)
• 5V in from USB-C or VGA Pin 9 (set jumper to 5V on IO board behind VGA port)
• No cables included - not all VGA cables have pin 9 wired. If you're not getting output, power using USB-C
• Not all cores have support for YC, including some computer cores, pre-release cores, etc.

NTSC MiSTer.ini settings:

• vga_mode=svideo
• ntsc_mode=0
• composite_sync=1

PAL MiSTer.ini settings:

• vga_mode=svideo
• ntsc_mode=0
• composite_sync=1
• menu_pal=0
